Shed Electrification: Powering Your Backyard Getaway

Determine electrical needs for your shed based on intended usage – lighting, outlets, and any powered tools or equipment. Create a detailed wiring diagram, specifying wire gauges, outlet placement, and lighting locations. Consult local building codes and obtain necessary permits before starting your shed wiring project to ensure compliance and safety. Hire a licensed electrician if you lack the skills or confidence to tackle the installation yourself.

Planning Your Shed’s Electrical System

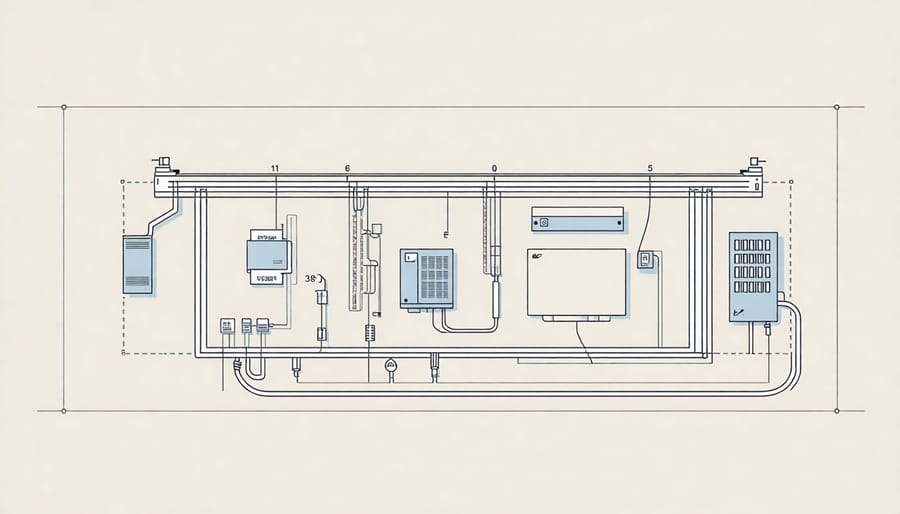

Shed wiring diagram showing electrical panel, wiring routes, outlets, and fixtures
Diagram illustrating typical shed wiring layout and components

Determining Your Power Needs

To determine your shed’s power needs, start by listing all the electrical devices and appliances you plan to use inside. Common items include lighting fixtures, power tools, a mini-fridge, or even a small air conditioner. Research the wattage requirements for each item and add them together to calculate the total wattage needed. It’s crucial to have accurate wattage information to ensure your shed’s electrical system can handle the load safely. Consider factors like the number of outlets required and their placement for convenience. If you’re unsure about calculating your shed’s power needs, consult with a licensed electrician who can assess your specific requirements and provide expert guidance. They can also help you determine the appropriate wire gauge, circuit breakers, and other components needed for a safe and code-compliant installation. By taking the time to properly plan your shed’s electrical needs, you’ll create a functional and enjoyable space that meets your needs for years to come.

Deciding on Wiring Method

When deciding on a wiring method for your shed, you have three main options: overhead, underground, and extension cords. Overhead wiring involves running electrical lines from your house to the shed via poles or supports. This method is often the most economical but may not be as aesthetically pleasing. Underground wiring offers a cleaner look by burying the electrical lines, but it requires more effort and expense to dig trenches and install conduits. Extension cords are a temporary solution that should only be used for low-power tools and not as a permanent wiring method. When choosing between overhead and underground wiring, consider factors such as your budget, local regulations, and the visual impact on your property. Consulting with a licensed electrician can help you make the best decision for your specific situation.

Gathering Required Materials

Before starting your shed electrical installation, make sure you have all the necessary materials on hand. Here’s a checklist of essential supplies: electrical wire (12/2 or 14/2 gauge), breakers (15 or 20 amp), outlets, switches, light fixtures, junction boxes, conduit (rigid or flexible), conduit fittings, nail plates, staples, and wire connectors. Don’t forget tools like a drill, hole saw, wire stripper, screwdrivers, hammer, level, and measuring tape. Having everything ready will make the installation process smoother and more efficient. Double-check your list and purchase high-quality materials from a reputable supplier to ensure a safe and reliable electrical system for your shed. With the right supplies and a clear plan, you’ll be well on your way to enjoying a well-lit and powered workspace.

Shed Electrical Installation: Step-by-Step

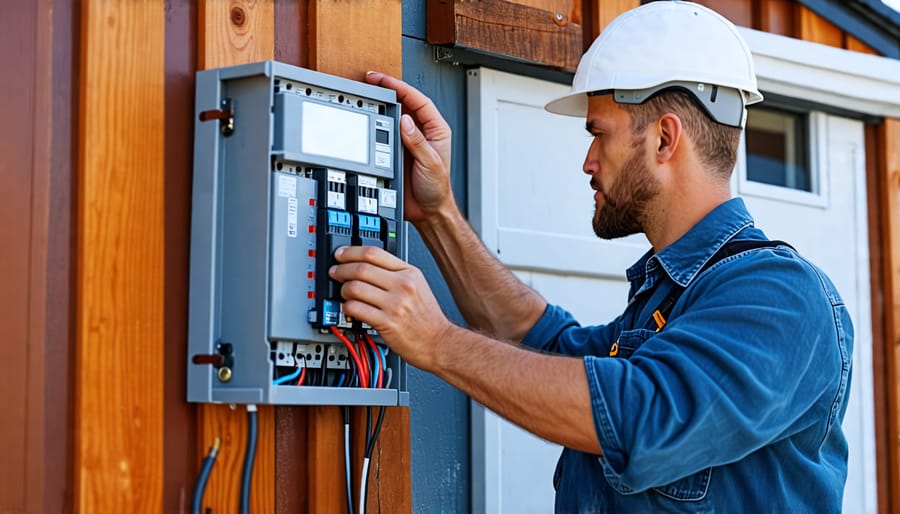

Installation of electrical breaker panel inside a shed
Electrician mounting a breaker panel on a shed wall

Mount the Electrical Panel

With the electrical panel and breakers in hand, it’s time to mount them securely in your shed. Choose a location that’s easily accessible but out of the way of your storage areas. Many DIYers prefer to install the panel near the entrance or on a sidewall. Using a stud finder, locate the wall studs and mark the mounting holes for your panel. Pre-drill pilot holes and fasten the panel to the studs with appropriately sized screws.

Next, connect the main service cable to the main breaker in your panel, ensuring a tight and secure connection. From there, you’ll run individual circuits to each breaker based on your wiring plan. Don’t forget to properly label each circuit for easy identification later.

Grounding is a critical safety component in any electrical system. Drive a grounding rod into the earth near your shed, then connect it to the grounding bar in your panel using a grounding wire. This provides a safe path for electrical current to dissipate in case of a fault or short circuit.

With the panel mounted and grounded, you’re ready to move on to running the individual circuits throughout your shed. Take your time and double-check each connection for safety and reliability.

Running the Wiring

With the electrical panel installed and grounded, it’s time to start running the wiring to your shed’s outlet boxes. The two main options for this are using non-metallic (NM) cables or running wires through conduit. NM cables, also known as Romex, are easier to work with and are suitable for most shed applications. However, if your local code requires conduit or you prefer the added protection it provides, that’s also a viable choice.

When running NM cable, use cable staples to secure it to the wall studs and ceiling joists every 4 feet and within 12 inches of each electrical box. Be careful not to staple too tightly, as this can damage the cable. If using conduit, securely fasten it to the framing with approved hardware.

Plan your cable or conduit routes to minimize the number of holes you need to drill through studs and joists. Drill holes in the center of the framing members to avoid weakening them. Make sure to weatherproofing any exterior penetrations to prevent moisture intrusion.

As you run the wiring, label each cable or conduit with its destination to make final connections easier. Leave about 6 inches of extra cable at each outlet box for making connections. Strip the outer sheathing and individual wire insulation carefully to avoid nicking the conductors.

With the wiring in place, you’re ready to make the final connections at the outlets and switches. Remember to turn off the power at the main panel before working on any electrical connections. Following these steps will ensure your shed’s electrical system is safely and properly installed.

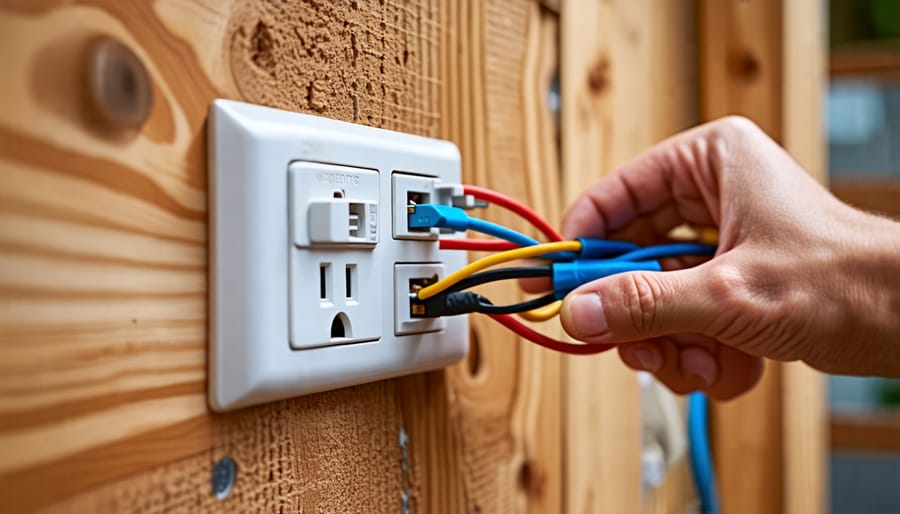

Wiring a power receptacle outlet in a shed
Closeup of hands wiring an electrical outlet in a shed

Installing Outlets and Fixtures

With the wiring in place, it’s time to install receptacles, switches, and light fixtures to make your shed fully functional. For receptacles, choose GFCI-protected outlets to ensure safety in damp conditions. Install them at convenient heights and locations based on your shed’s layout and intended use. When wiring switches, consider using three-way switches for flexibility in controlling lights from multiple entry points. As for light fixtures, select options that provide ample illumination for your needs, whether that’s general ambient lighting, task lighting over a workbench, or even exterior lighting for added security and convenience. Make sure to follow the manufacturer’s instructions and local electrical codes when installing these devices. Don’t forget to test each one before considering the job complete. With outlets, switches, and lights in place, your shed will be ready to power all your projects and storage needs.

Connecting to Power Source

After all the wiring is complete, it’s time to connect the shed to your home’s main electrical panel or meter. For safety and compliance, it’s best to have a licensed electrician handle this final hookup. They will ensure the connection is secure, properly grounded, and up to code. Once connected, the electrician will activate the power and test all the outlets and switches in your shed to confirm everything is working correctly. With the electricity flowing, your shed is now ready to use! You can start setting up your workspace, plugging in tools and appliances, and enjoying the convenience of a fully powered outbuilding right in your backyard.

Safety Tips and Code Compliance

Avoiding Electrical Hazards

When working with electricity, safety should always be your top priority. Make sure to turn off the power at the main breaker before beginning any electrical work. Wear protective gear like rubber gloves and shoes to insulate yourself from potential shocks. Use tools with insulated handles and avoid standing in water while working.

To prevent fire risks, ensure that all wiring is properly rated for the amperage and voltage being used. Avoid overloading circuits by running too many appliances or tools at once. Install GFCI outlets to protect against ground faults, especially in damp areas like sheds.

Regularly inspect your shed’s electrical system for signs of wear, damage, or loose connections. Replace any frayed wires promptly and keep flammable materials away from electrical components. By following these simple precautions, you can safely enjoy the convenience of electricity in your backyard shed without putting yourself or your property at risk.

Meeting Local Building Codes

Before starting your shed electrical installation project, it’s crucial to familiarize yourself with the local building codes and regulations. These codes are in place to ensure the safety and integrity of your shed’s electrical system. Failing to adhere to these guidelines could result in fines, legal issues, or even dangerous situations.

Begin by contacting your local building department to inquire about the necessary permits and inspections for your project. They will provide you with the specific requirements for your area, which may include the type of wiring, outlets, and lighting allowed in your shed.

Once you have obtained the necessary permits, make sure to schedule the required inspections at various stages of the installation process. These inspections will verify that your work complies with the local codes and that your shed’s electrical system is safe for use. Remember, taking the time to follow these steps will give you peace of mind and ensure a successful, long-lasting electrical installation in your shed.

In conclusion, powering your backyard shed with electricity opens up a world of possibilities for turning it into a functional and enjoyable space. By carefully planning your electrical needs, obtaining necessary permits, and following safety guidelines during installation, you can ensure a safe and reliable power supply for your shed. Whether you’re creating a workshop, home office, or simply need lighting and outlets for storage, a properly wired shed adds value and versatility to your property. With the right knowledge and preparation, you can confidently take on this rewarding DIY project and transform your ordinary shed into an electrified haven for work or leisure. So, power up your shed today and start enjoying the benefits of a well-equipped and comfortable outdoor space!
