Build a Cozy Insulated Lean-to Shed That Keeps Your Gear Safe Year-Round

Cozy insulated lean-to shed integrated with a backyard landscape, showing tools, insulation layers, and a welcoming light from within, highlighting protection from weather conditions.

Transform your backyard storage needs with a weatherproof, insulated lean-to shed that maximizes space efficiency while protecting valuable tools and equipment year-round. Built against an existing wall or structure, these practical additions combine the simplicity of traditional lean-to designs with modern insulation techniques, creating a robust storage solution that maintains consistent internal temperatures despite external weather conditions.

A properly insulated lean-to shed serves multiple purposes: it extends your home’s functional storage space, protects temperature-sensitive items, and adds value to your property. Whether you’re storing power tools, gardening equipment, or creating a mini workshop, the combination of strategic placement and proper insulation ensures your belongings remain protected from moisture, extreme temperatures, and weather damage.

Before diving into construction, understanding the key components – from vapor barriers to insulation materials and proper ventilation – will ensure your lean-to shed stands the test of time. This guide walks you through essential considerations for building an insulated lean-to shed that balances functionality, durability, and energy efficiency.

Planning Your Insulated Lean-to Shed

Location and Size Planning

Selecting the perfect location for your insulated lean-to shed starts with evaluating your yard’s terrain and accessibility. Choose a level spot that’s slightly elevated to prevent water pooling, ideally with good drainage and minimal exposure to harsh weather conditions. The side of your house or garage typically works best, as it provides the necessary support wall while offering protection from prevailing winds.

When planning dimensions, consider both your immediate storage needs and potential future requirements. Standard lean-to shed depths range from 4 to 8 feet, while the length can vary based on your available space and local building codes. Remember to factor in a slight slope for the roof (typically 1-2 inches per foot) to ensure proper water runoff.

For optimal functionality, allow at least 2 feet of clearance around three sides of the shed for maintenance access and ventilation. The height should accommodate your tallest stored items while complying with local zoning restrictions – typically 8 to 10 feet at the highest point. If you’re planning to store larger equipment, consider adding extra width to your measurements for comfortable movement and organization.

Cross-sectional diagram of lean-to shed showing foundation, framing, insulation layers, and roof structure
Detailed diagram showing the cross-section of an insulated lean-to shed with labeled components

Material Selection and Budget Planning

When planning your insulated lean-to shed, carefully selecting materials will ensure durability while keeping costs manageable. For the basic structure, pressure-treated lumber is essential for the frame and base, typically costing between $200-$300. The exterior walls require weather-resistant siding ($150-$250), while the roof needs sturdy plywood sheathing and quality roofing materials ($175-$275).

For insulation, consider rigid foam boards for walls and ceiling ($150-$200), which offer excellent R-value for the price. You’ll also need a vapor barrier ($30-50) to prevent moisture issues. Don’t forget interior wall panels, usually OSB or plywood ($100-150), and basic hardware including screws, nails, and brackets ($75-100).

A typical 8×6 insulated lean-to shed project usually totals between $900-$1,400, depending on your location and material choices. Save money by watching for seasonal sales at home improvement stores and buying materials in bulk when possible. Remember to factor in additional costs for tools if you don’t already own them, and always include a 10% contingency in your budget for unexpected expenses.

Foundation and Frame Construction

Proper Foundation Techniques

A solid foundation is crucial for your insulated lean-to shed’s longevity and stability. Before starting construction, take time to determine the best foundation for your shed based on your specific site conditions and local climate.

Start by clearing and leveling the designated area, removing any vegetation, rocks, or debris. For most lean-to sheds, a concrete slab or gravel foundation works exceptionally well. If choosing concrete, pour a 4-inch thick slab with proper reinforcement and ensure it extends 2-3 inches beyond your shed’s footprint on all sides.

For a gravel foundation, excavate 4-6 inches deep and lay landscape fabric to prevent weed growth. Fill with crushed stone or gravel, tamping down each layer for maximum compaction. Use pressure-treated lumber for the bottom frame to prevent moisture damage, and install it slightly above ground level to promote proper drainage.

Consider adding concrete pier blocks at key support points for additional stability. These blocks should sit on compacted gravel beds and be perfectly level with each other. Use a laser level or string line to verify proper alignment – even small discrepancies can lead to significant issues later.

Remember to check local building codes and obtain necessary permits before starting your foundation work. A properly installed foundation will protect your investment and ensure your insulated lean-to shed remains stable and functional for years to come.

Frame Assembly Methods

Building a sturdy frame is crucial for your lean-to shed’s longevity and stability. Start by constructing the base frame using pressure-treated 2×6 lumber, ensuring all corners are perfectly square using the 3-4-5 rule. Secure the frame to your concrete pad or foundation using heavy-duty anchor bolts.

For the wall frames, cut your 2×4 studs to size, spacing them 16 inches on center for optimal support and easier insulation installation later. The front wall should be taller than the back wall to create the characteristic lean-to slope. Remember to include extra framing around windows and doors, using double studs for added strength.

When assembling the roof frame, cut your rafters at the correct angle to match your desired pitch. Install hurricane ties at each rafter-to-wall connection for added security. Don’t forget to include a header beam along the house attachment point to distribute the weight evenly.

For the best results, pre-drill your holes and use galvanized screws rather than nails where possible. This prevents splitting and ensures a more secure connection. Double-check all your measurements and angles before making final attachments, as mistakes are much harder to fix later.

Pro tip: Create a template for your rafters using scrap wood before cutting your actual materials. This saves both time and expensive lumber from potential errors.

Construction worker assembling wooden frame for lean-to shed with visible joint connections
Step-by-step photo of frame assembly showing key joints and support structures

Insulation Installation Process

Wall Insulation Techniques

Proper wall insulation is crucial for maintaining a comfortable temperature in your lean-to shed while protecting your stored items. Before starting, familiarize yourself with various insulation costs and materials to make an informed choice for your project.

Begin by installing a vapor barrier against the outer wall sheathing to prevent moisture buildup. Next, secure wooden battens vertically between the wall studs, creating a framework for the insulation material. Fiberglass batts are a popular choice due to their excellent thermal properties and ease of installation. Cut the batts to fit snugly between the studs, ensuring there are no gaps or compressed areas that could reduce insulation effectiveness.

For enhanced performance, consider using rigid foam boards in combination with fiberglass. Place the foam boards directly against the vapor barrier before installing the batts. This creates an additional thermal barrier and helps prevent thermal bridging through the wall studs.

Once the insulation is in place, cover it with a second vapor barrier on the interior side. This double barrier system is particularly important in areas with high humidity. Finally, install interior wall cladding, such as plywood or oriented strand board (OSB), to protect the insulation and create a finished look.

Remember to pay special attention to corners and areas around windows or doors, as these are common spots for heat loss. Use expanding foam to seal any small gaps or cracks before completing the wall covering. This comprehensive approach ensures your lean-to shed maintains consistent temperature control throughout the year.

Detail of insulation material being installed between wooden studs with vapor barrier visible
Close-up photo showing proper insulation installation between wall studs

Roof Insulation Strategies

The roof of your lean-to shed requires careful insulation to maintain a comfortable interior temperature and protect your belongings from moisture. Start by installing a vapor barrier directly beneath your roofing material to prevent condensation from seeping through. A heavy-duty polyethylene sheet works well for this purpose and creates an effective moisture barrier.

For the main insulation layer, you have several excellent options. Rigid foam boards are particularly effective for shed roofs, offering excellent R-value while being relatively easy to work with. Position these boards between your roof rafters, ensuring a snug fit without compression. Alternatively, fiberglass batts can provide good insulation at a lower cost, though they require careful installation to maintain their effectiveness.

Remember to leave a small air gap between your roofing material and insulation to allow for proper ventilation. This prevents moisture buildup and extends the life of both your insulation and roofing materials. For added protection, consider installing foam rafter vents before adding your insulation.

To finish the interior, install a solid backing board such as OSB or plywood over the insulation. This creates a clean look while protecting the insulation from damage. Seal all joints and edges with appropriate tape or caulk to prevent air leaks.

Pro tip: When working with any insulation material, wear appropriate protective gear including gloves, a dust mask, and eye protection. For optimal results, choose insulation with an R-value of at least R-19 for your roof, especially if you plan to use the shed as a workshop or storage for temperature-sensitive items.

Finishing Touches and Weather Protection

Exterior Finishing

Protecting your insulated lean-to shed from the elements is crucial for its longevity and functionality. Start by waterproofing your shed materials before applying the exterior finish. This preventive step ensures your structure remains moisture-resistant for years to come.

For the exterior cladding, you have several weather-resistant options. Vinyl siding is popular due to its durability, low maintenance, and wide range of colors. Wood siding offers a classic look but requires regular maintenance to prevent rot and insect damage. Metal siding provides excellent durability and modern appeal, though it may be more expensive initially.

The roof deserves special attention, as it’s your first line of defense against rain and snow. Consider installing metal roofing for superior protection and longevity. Alternatively, architectural shingles offer good protection while matching your home’s aesthetic.

Don’t forget to add proper flashing around windows, doors, and where the lean-to meets your main structure. Install quality gutters to direct water away from the foundation, and consider adding soffit vents for proper airflow. A well-planned exterior finish not only protects your investment but also enhances your property’s overall appearance.

Interior Organization

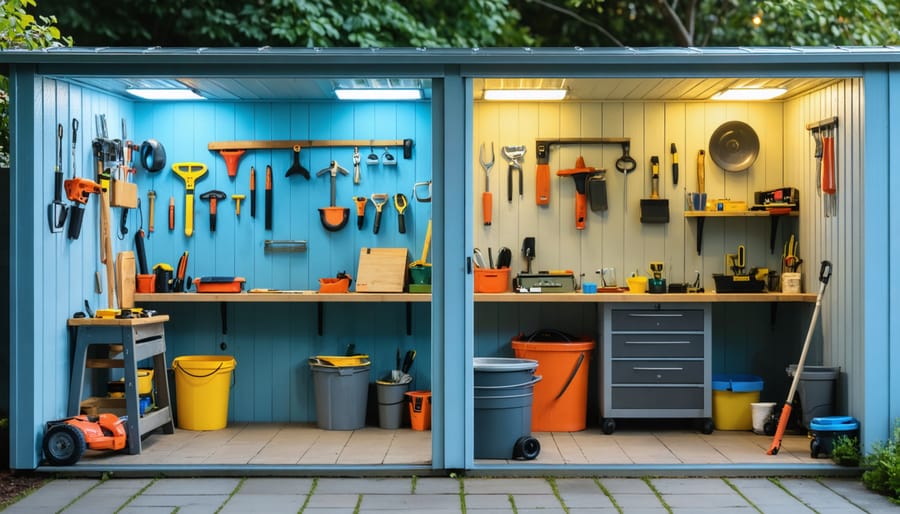

Maximizing space in your insulated lean-to shed starts with smart organization. Begin by installing adjustable shelving units along the back wall, which offers flexibility as your storage needs change. Wall-mounted pegboards are excellent for keeping tools visible and easily accessible while freeing up valuable floor space.

Consider creating designated zones within your shed: one area for gardening tools, another for power equipment, and a workspace for projects. Installing hooks and brackets at various heights allows you to take advantage of vertical space, perfect for hanging longer items like rakes and shovels.

For frequently used items, position storage solutions near the entrance. Clear plastic bins with labels work well for smaller items and protect contents from dust. Consider adding a fold-down workbench that can be tucked away when not in use, maximizing your available space.

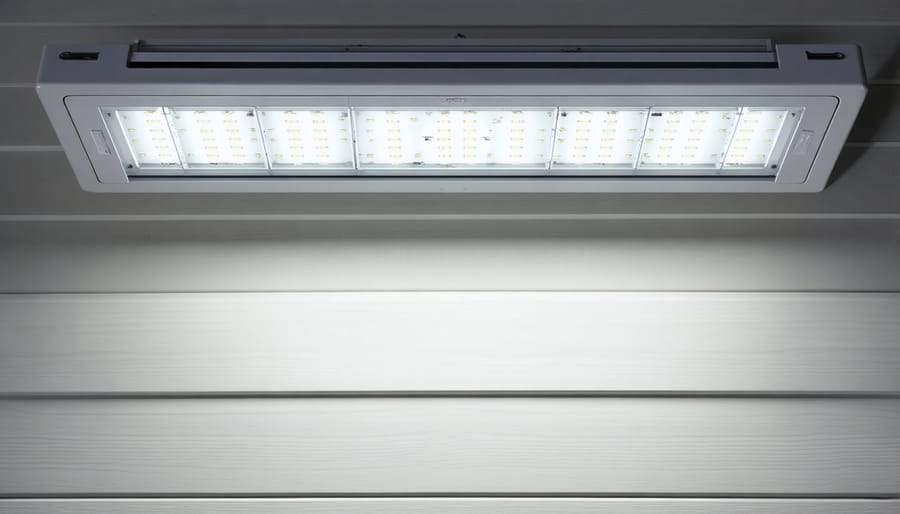

Make use of the ceiling space by installing overhead storage racks for seasonal items or rarely used equipment. Just ensure these items don’t interfere with your insulation. Adding motion-sensor LED lights helps you locate items quickly, especially during darker hours.

For optimal organization, invest in weather-resistant storage solutions that can withstand temperature fluctuations. Remember to leave adequate walking space and ensure your heaviest items are stored at waist height to prevent strain when lifting. Regular maintenance of your organization system will keep your shed functional and clutter-free year-round.

An insulated lean-to shed represents a valuable investment in your property, offering both practical storage solutions and a comfortable workspace throughout the year. By following proper construction techniques and maintaining your shed regularly, you’ll ensure it serves you well for many years to come.

Remember to inspect your shed’s insulation annually, checking for any signs of moisture, pest intrusion, or damage. Clean your shed’s gutters seasonally and ensure proper drainage around the foundation to prevent water damage. Maintain the exterior finish according to manufacturer recommendations, whether it’s paint, stain, or siding.

Keep ventilation systems clear and functioning to prevent condensation buildup, which could compromise your insulation’s effectiveness. Check door seals and weather stripping periodically, replacing them when worn to maintain optimal thermal efficiency.

For best results, organize your stored items to allow proper air circulation and avoid stacking items directly against insulated walls. Consider adding a dehumidifier during particularly humid seasons to protect both your belongings and the shed’s structure.

By investing time in regular maintenance and addressing minor issues promptly, your insulated lean-to shed will continue to provide reliable, temperature-controlled storage space while enhancing your property’s value. Whether you use it as a workshop, garden storage, or hobby space, proper care ensures your shed remains a functional and comfortable extension of your home.
