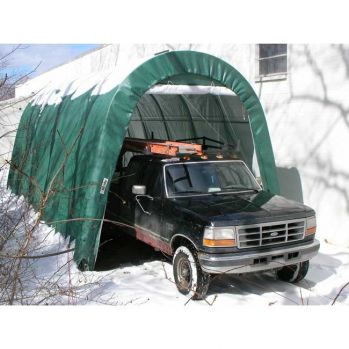

Rhino Utility Building Round 14’Wx30’Lx12’H

Rhino Utility Building Round 14’Wx30’Lx12’H

All frame components are made from heavy duty galvanized steel. Main cover and doors are made from long life UV Resistant, Fire Retardant Polyethylene with woven backing. All fabric components feature heat-welded seam construction. Unit features double zipper door on BOTH ENDS to allow drive-through capability, and good ventilation. Each door contains a pocket for a rigid pole at the base. The long lasting cover is designed with full flap provides for run-off of rain or melting snow and diverts water from entering through the perimeter of the cover. Each unit comes completely equipped with a set of earth anchors with 36″” stainless steel tethers and a 36” drive rod to secure the unit at each corner and each frame arch.

Utility Building Features
Heavy Duty Galvanized Finish on All Steel Frame
Components for Maximum Strength & Long Life
Easy Bolt Together Design – all Pre-drilled & Cut
Wind Brace Support on Both Sides
Two(2) Double Zipper Doors with Bottom Pockets
One (1) complete Roll-up Door Kit
Protective Plastic Tube End Caps – All Open Ends
Standard Thread Plated Hardware Kit with Retaining
Nuts & Protective SS Washers
Specifications
Nominal Size: 14′ Wide x 30’ Long x 12′ High
Arches: Seven (7 ) on 60″” spacing
1-5/8″” diameter frame members
Standard End Door Size: 12′ wide x 10′ height at edge double zipper door each end
Available Colors: Outer Colors: Grey / Green / Tan
All Interiors: White Only
Shipping Weight: 460 Lbs. in Five (5) boxes shipped via motor freight
Box Dimensions: Box 1: 84″” Long x 17″” Wide x 4″” High
Box 2: 84″” Long x 17″” Wide x 5″” High
Box 3: 108″” Long x 30″” Wide x 4″” High
Box 4: 59″” Long x 12″” Wide x 4″” High
Box 5: 76″” Long x 28″” Wide x 5″” High
Main Cover: UV protected 24 mil, fabric backed poly. 10oz. weight
Fire Retardant Standard: Main Cover & Doors meet CPAI -84 Section 5
Anchors: Fourteen(14) Anchors with U-Bolts & 36″”Drive Rod Std.
